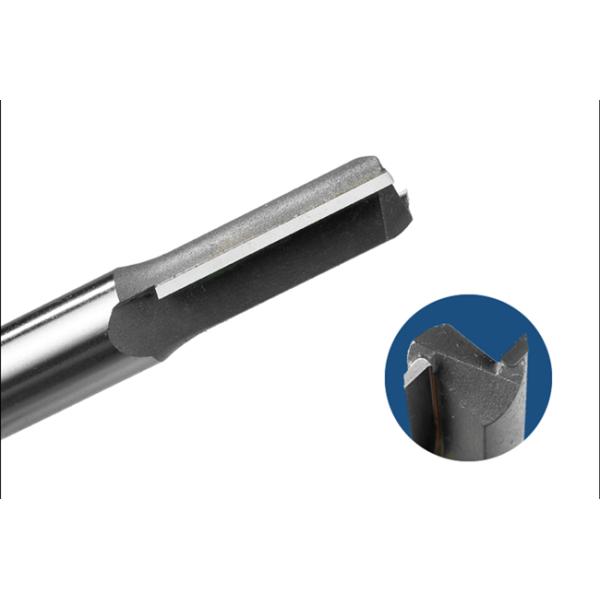

High Precision Straight Cutter For Plywood/MDF/TCT Straight Cutting Bits
Product Description
This series of straight bits have two shank diameters of 12.7mm and 6.35mm. The large-shank straight bit is suitable for cutting machine, engraving machine, hanging machine, mantle machine, and two-handed gong machine. And the straight bit with small shank is used for small gong machine and trimming machine which can be operated by one hand.
Product name: metric straight bit.
Product brand: tiger shark.
Product material: imported alloy.
Product number: 1801.
Product advantages
1. Alloy cutter head: The cutter head is made of imported alloy material with higher quality inspection standard. It is high-strength and wear-resistant, not easy to tipping and have longer service life.
2. Laser marking: laser engraving LOGO not easy to fall off, accurate scale and positioning, corrosion resistant, exquisite and beautiful.
3. High-frequency welding: the blade and the body adopt high-frequency welding technology, the welding is much firmer, so that it is not easy to unsoldering and broken, which makes the service life much longer.
4. Individual packaging: Each knife has a separate packaging box, indicating the size of the tool, easy to save and use.
Specification
| NO. | S | D | H |
| 1 | 1/4 | 6/6.5/7 | 20 |
| 2 | 1/4 | 8/9 | 25 |
| 3 | 1/4 | 10-16 | 30 |
| 4 | 1/2 | 6/6.5/7 | 20 |
| 5 | 1/2 | 8/9 | 25 |
| 6 | 1/2 | 10-50 | 30 |
Note
1. S=Shank Diameter, D=Blade Diameter, H=Cutting Depth.
2. Other specifications are available upon request.
